Size
915x1830mm, 1220x2440mm, 1220x3000mm, size can be customized
Thickness
12mm, 15mm, 16mm, 18mm
Density
0.65, 0.7, 0.75, 0.8 g/cm3
Surface
Smooth
Customizable Options
Available upon request to accommodate specific project requirements
Your Trusted Source for PVC Foam Board, PVC Trim & Moulding, Rigid PVC Sheet, Acrylic, and More
- 📧sale@boardwaybuilding.com💬86 138 2826 6785
Home / All / PVC Concrete Formwork /

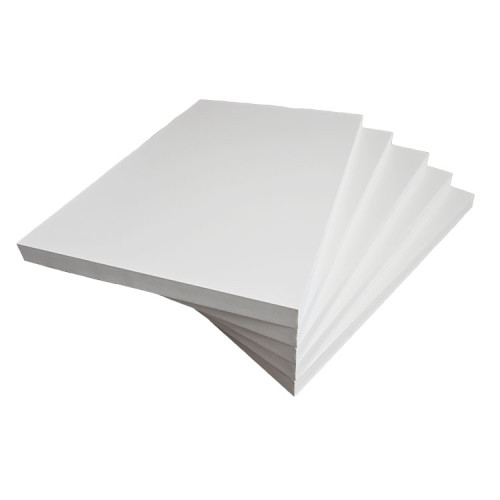

12mm 15mm 18mm PVC Plastic Construction Shuttering Board High Performance Competitive Price
12mm 15mm 18mm PVC Plastic Construction Shuttering Board High Performance Competitive Price
Detail Information
PVC FORMWORK
PVC formwork is a premium construction material crafted from durable, environmentally friendly PVC. Engineered to endure tough conditions, it provides exceptional resistance to moisture, corrosion, and wear, making it a superior choice compared to traditional plywood or metal formwork. Known for its high reusability, PVC formwork offers both cost savings and environmental benefits over multiple construction cycles. Its lightweight design makes handling and installation easier, helping to lower labor costs and accelerate the assembly process for residential, commercial, and industrial projects.
Features
- Waterproof
- Weather Resistance
- High Impact Resistance
- Strong Workability
- Cost Efficiency
Specification
Shape Types
Flat PVC Formwork
Our Flat PVC Formwork is designed for creating smooth, flat concrete surfaces. It is ideal for a wide range of construction projects, offering a reliable and durable solution. The flat design ensures uniformity and precision in concrete casting, making it a preferred choice for many builders and contractors.
Curved PVC Formwork
Our Curved PVC Formwork is specifically designed for projects that require curved concrete surfaces. It offers flexibility and strength, allowing for the creation of smooth and precise curves in concrete structures. This formwork is perfect for architectural features, bridges, tunnels, and any construction where curved surfaces are essential.
PVC VS Plywood Formwork
- We carried out a hands-on comparison between plywood and PVC formwork at our construction site to evaluate their performance under the same conditions. The two images below show both formwork types in use within the same building section, offering a direct side-by-side comparison. Each type of formwork has been reused six times, providing us with insights into their durability, ease of handling, and the quality of concrete finishes after multiple uses.
|
Formwork Performance
|
PVC Concrete Formwork
|
Plywood Formwork
|
Hardness | 70 - 75 Shore D | Less than 30 Shore D |
Flatness | Flat overall, slightly bent | The bending height is close to 2 cm |
Surface | No damage on the surface, with small dent | The surface is damaged, especially near the edge |
|
Corners
|
Intact and undamaged
|
The corners are cracked, not right angles
|
|
Expansive Deformation
|
No expansion
|
Expand and separated layer
|
|
Service life
|
Can continue to be used
|
Out of use
|
- The concrete surfaces shown below were demoulded from two different formworks. The concrete cast using PVC formwork exhibits a noticeably superior finish. The following images provide a comparison of the two surfaces: on the left is the concrete formed with PVC formwork, and on the right is the concrete formed with plywood formwork.
Concrete Appearance | PVC Concrete Formwork | Plywood Formwork |
Concrete Color | The color of concrete can be uniform and beautiful without a mold release agent | A release agent must be used, otherwise the color of the concrete cannot be uniform |
|
Wall
|
Overall clean and smooth
|
Rough with dirt and scratch, and uneven concrete
|
|
Ceiling
|
Tight joints, with only a little concrete overflow
|
There is excess concrete in the joints, need to be removed manually
|
|
Beam
|
Overall clean and smooth
|
Rough with dirt and scratch, and uneven concrete, especially at the junction
|
|
Pillar
|
Overall clean and smooth
|
The concrete at the junction is uneven, with concrete overflow or insufficient
|
Technical Data Sheet
- Testing sample: PVC concrete formwork, 18mm thick
|
Test Item
|
Method
|
Unit
|
Result
|
|
Density
|
ASTM D792
|
g/cm3
|
0.73
|
|
Hardness
|
ASTM D2240
|
Shore D
|
75
|
Water Absorption | ASTM D570 | % | 1.5 |
Flexural Strength | ASTM D790 | MPa | 26 |
Flexural Modulus | ASTM D790 | MPa | 1000 |
Tensile Strength at Yield | ASTM D638 | MPa | 30 |
Tensile Modulus | ASTM D638 | MPa | 1200 |
|
Elongation at Break
|
ASTM D638
|
%
|
15
|
Modulus of Elasticity | ASTM C1548-2 | MPa | 1600 |
Charpy Impact Resistance | ASTM D6110 | KJ/m2 | 36 |
Construction Sites
- Residential / Commercial Construction
- Public Buildings
- Industrial Construction
